£999.99
330Ah lithium leisure battery power in a compact under-seat format: the 12V SEATBASE PRO is designed for motorhomes, campervans and van conversions.
Measuring 280W × 320L × 180H, it is designed to fit under the swivel seat of your leisure vehicle, including the VW T6.1 seatbase configuration. The existing fitment range includes Ford Custom, VW T7, Sprinter, Crafter, MAN, Renault and Fiat Ducato models. Check the available space, swivel mechanism and cable clearance before installation.
Scoop handles help with installation. The 330 SEATBASE PRO now supports more mounting orientations, giving installers and van conversion specialists greater flexibility when fitting the battery into restricted spaces. Mounting brackets are supplied as standard for secure attachment to the seatbase floor or frame.
The 12V 330Ah Seatbase Lithium Battery delivers an impressive 250A or 3200W of continuous discharge power, making it the perfect choice for powering GAS LESS systems. Power air fryers and induction hobs effortlessly when paired with a suitable inverter. With 330AH it provides ample reserve capacity to support other off-grid uses such as your fridge, tv and lights.
The PRO version now includes a panel-mountable remote isolation lead, allowing you to conveniently switch the battery ON or OFF for maintenance or storage without needing direct access to the battery.
Engineered with the very latest in cutting-edge automotive cell technology certified to IEC62619 standards, the SEATBASE PRO has a published cell-cycle specification of 8,000 cycles at 80% depth of discharge. Actual service life depends on charging, temperature, storage and use.
Designed for performance and longevity, it’s the ultimate solution for those seeking seamless ‘plug & play’ integration with Victron, innovation, reliability, and high performance off-grid energy.
This state-of-the-art lithium battery is part of a range developed by Lithium Pro Energy called SMARTCOMM SERIES offering advanced market-leading capacity, power and safety features embedded within the battery as standard;
EVE GRADE A CELLS: All LithiumPro batteries use only traceable QR coded, UL-listed cells, direct from the manufacturer, that are matched for voltage, internal resistance, and capacity before assembly.
330 SEATBASE PRO — DATASHEET (PDF)
MRBF FUSE — INSTALLATION GUIDE
SMARTIQ BMS APP — USER GUIDE (PDF)
SMARTIQ BMS app download: Android / Google Play or Apple App Store.
330Ah lithium leisure battery power for motorhomes and campervans. The 12V SEATBASE PRO combines a compact under-seat design with SMARTIQ monitoring, a 250A BMS and SMARTCOMM SERIES connectivity.
More capacity beneath your seat. More freedom away from hook-up.
Designed for modern off-grid leisure systems, the SEATBASE PRO brings together high-capacity LiFePO4 cells, heated cell technology, active balancing and pre-charge protection. A supplied panel-mountable remote isolation lead lets you switch the battery on or off without reaching into the seatbase.
The SEATBASE PRO follows the outgoing 280Ah SEATBASE model, increasing nominal capacity to 330Ah. That is an additional 50Ah of capacity for lighting, refrigeration, entertainment and other onboard equipment.
The focus remains on making useful space beneath a vehicle seat work harder. Supplied mounting brackets and scoop handles help with positioning and securing the battery, while remote isolation makes access easier once it is installed.
When upgrading from an existing SEATBASE or another leisure battery, check the new battery’s dimensions, mounting arrangement, terminal clearance and electrical-system requirements before fitting.
A high-capacity leisure battery supports longer periods away from electrical hook-up. Your actual running time depends on the appliances you use, their power consumption and the energy supplied by solar, mains or alternator charging.
The SEATBASE PRO combines capacity with these features:
The SEATBASE PRO’s 250A BMS supports high-current leisure applications. Alongside everyday equipment such as your fridge, TV and lighting, the battery can form part of an inverter system for appliances such as induction hobs and air fryers.
The product’s stated discharge capability is up to 3200W. The power available to an appliance also depends on battery voltage, inverter efficiency, cable sizes, connections and protective equipment. Match the complete installation to the intended load.
For a gas-free cooking system, assess peak demand and the combined consumption of appliances before choosing the inverter and charging equipment.
The under-seat format helps preserve living and storage space in motorhomes, campervans and van conversions. The listed case dimensions are 280W × 320L × 180H; use the product’s dimension drawing when checking your installation.
The listed fitment range includes VW T6.1, Ford Custom, VW T7, Mercedes Sprinter, VW Crafter, MAN, Renault and Fiat Ducato models. Seat frames, swivels and conversion layouts vary, so vehicle model alone does not confirm fitment.

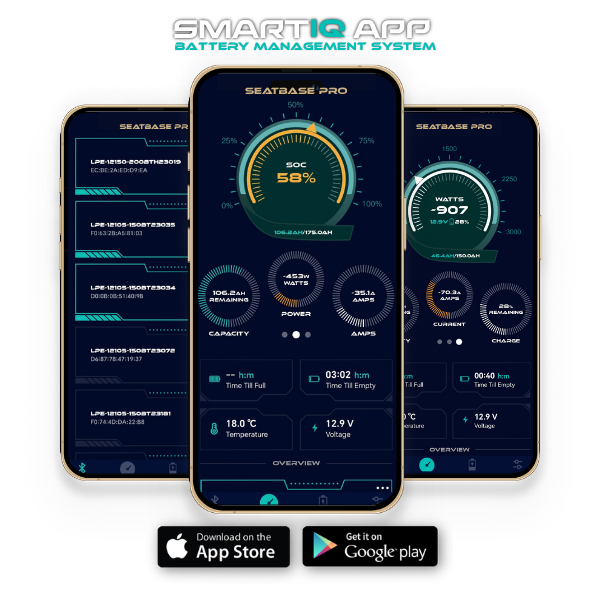

The SMARTIQ BMS app provides an overview of battery status, health and state of charge from a compatible smart device. It helps you understand the battery’s condition while using your off-grid system.
SMARTIQ supports monitoring of single and multiple battery systems. Any series or parallel installation must still follow the model-specific connection limits and installation guidance.
Download SMARTIQ from the Google Play Store or Apple App Store.
The battery management system monitors operating conditions and provides protection for the cells and connected system. Pre-charge protection limits inrush current when connecting high-load equipment such as an inverter.
Active balancing supports cell balance during charging. The SEATBASE PRO uses traceable, QR-coded Grade-A LiFePO4 cells matched for voltage, internal resistance and capacity before assembly. The published cell-cycle specification is 8,000 cycles at 80% depth of discharge; actual service life depends on charging, temperature, storage and use.
The remote isolation lead can be mounted where it is convenient to reach. It allows you to switch the battery on or off for maintenance or storage without direct access beneath the seat. Follow the installation instructions for safe electrical isolation.
Automatic hibernation reduces battery power consumption after 24 hours of inactivity. The serviceable screw-top construction provides access for future repair or maintenance by an appropriately qualified technician.
Heated cell technology is included in the SMARTCOMM SERIES to support cold-weather charging. Follow the SEATBASE PRO’s specified temperature limits and heating instructions when operating in freezing conditions.
Before winter storage, follow the model-specific guidance for charge level, isolation and periodic checks. Contact LithiumPro ASSIST if you need help preparing your system.
CANBus and RS485 communication are part of the SEATBASE PRO’s SMARTCOMM feature set. Compatible Victron GX equipment, including Cerbo GX and Ekrano GX, can receive battery-system information through the appropriate connection.
Use the correct LithiumPro SCS-to-Victron cable and follow the equipment configuration guidance. Confirm device compatibility and the required settings before commissioning.
Assess the installation as a complete system. When replacing a lead-acid battery, check the charger profile, alternator charging arrangement, cable sizes, terminal connections, isolation and primary fuse.

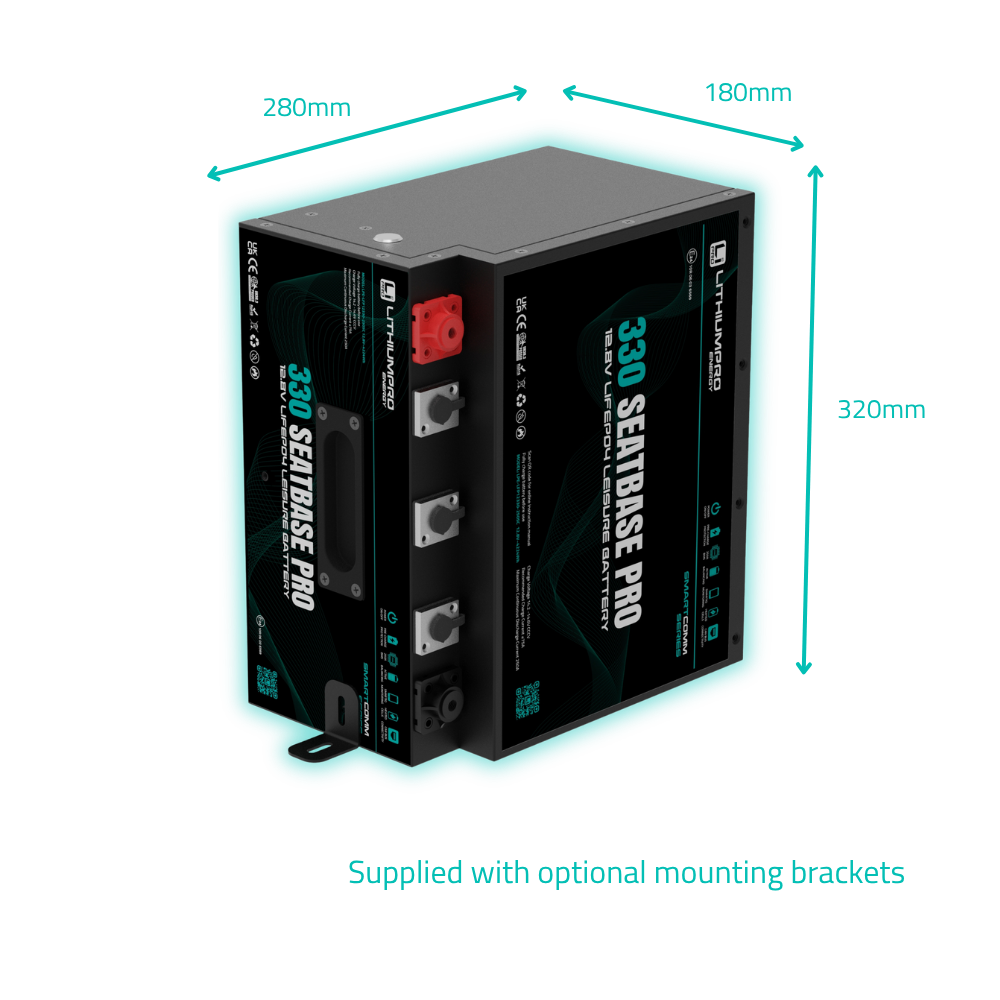

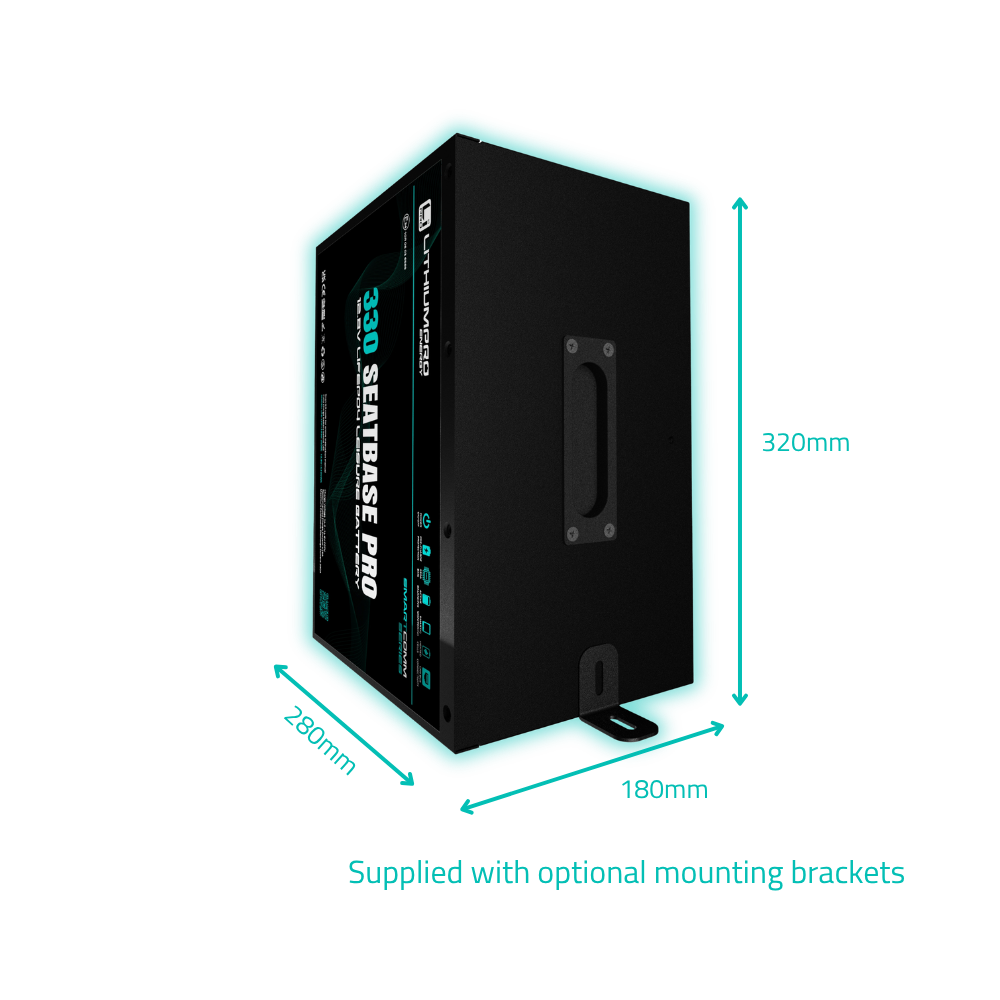

The 330 SEATBASE PRO now supports more mounting orientations, giving installers and van conversion specialists greater flexibility when working in restricted spaces. Mounting brackets are supplied as standard to secure the battery to a suitable seatbase floor or frame. Follow the permitted mounting orientations in the installation guidance and leave adequate clearance for connections.
Select charging equipment and settings that meet the SEATBASE PRO’s model-specific requirements. See our lithium battery chargers and guide to lithium battery fuses for supporting information.
The SEATBASE PRO is listed as ECE R10 Type Approved, with cell technology certified to IEC62619. Refer to the model-specific documentation for certification details.
LithiumPro provides a five-year manufacturer’s warranty, subject to the published warranty conditions. For help confirming fitment, planning an installation or configuring equipment, contact LithiumPro ASSIST.
Check the dimension drawing against your seatbase, swivel mechanism and cable routes. Different seat frames and conversion layouts can affect fitment, even within the same vehicle model.
The SEATBASE PRO increases nominal capacity from 280Ah to 330Ah, adds more mounting orientations for flexible installation in restricted spaces, and includes a panel-mountable remote isolation lead. Mounting brackets are supplied as standard. Check the full specification when planning a replacement.
Yes, as part of a suitably designed inverter system. Check appliance demand, inverter capacity, cabling and protection; usable appliance power depends on the complete installation.
Check the existing charger’s profile and settings against the SEATBASE PRO’s charging requirements. Do not assume that every lead-acid charging system is suitable.
Yes. SMARTIQ monitoring is included and provides battery status and state-of-charge information through the app on a compatible smart device.
The supplied panel-mountable remote isolation lead allows on/off control from an accessible location. Follow the installation instructions when setting up and using it.
330 SEATBASE PRO — DATASHEET (PDF)
MRBF FUSE — INSTALLATION GUIDE
SMARTIQ BMS APP — USER GUIDE (PDF)
SMARTIQ BMS app download: Android / Google Play or Apple App Store.
All LithiumPRO batteries use the latest level Bluetooth 5.0 technology to pair with your smart device. This enables you to monitor the health and performance of your battery in ‘Real-time’ on the move. Our intelligent LiFePO4 Lithium leisure batteries are embedded with advanced SMARTIQ Technology, which brings battery monitoring to the palm of your hand. No more guesswork, no more working out voltages or wiring of complex shunts. Just download our SMARTIQ BMS APP to monitor and track your batteries performance whilst on the move.
Using LithiumPro's latest SMARTIQ technology you can pair your Apple or Android Device to multiple batteries for real-time data monitoring. With In-App status notifications keeping you updated on performance and health.
Whether your system is connected in SERIES or PARALLEL, our app lets you monitor all your battery data from multiple batteries on a single, easy-to-read screen—giving you a complete overview of performance, state of charge, and system health in real time.
Our Advanced Battery Management System (BMS) controls all battery parameters to ensure safe operation at all times. Providing industry-leading protection against over-charge, over-discharge, over-current, short-circuit, and extreme temperature protection.
No more guesswork - Get live battery sent to your smart device, data showing the % State of Charge, with accurate predictions of Time-till-Empty and Time till Full, taking the anxiety out of being off-grid.
The battery fuse protects the wiring — not the devices connected to them. When replacing lead-acid batteries with lithium (LiFePO4), a suitably rated primary battery fuse is essential. Its critical role is to protect the system from catastrophic short-circuit events. Unlike lead-acid batteries, LiFePO4 cells have extremely low internal resistance and in a dead-short scenario the battery can release many thousands of amps almost instantaneously for a split second. Without adequate protection, this can vaporise cables, potentially resulting in fire. This means the fuse protecting your old lead-acid battery is no longer suitable. It will need replacing. You are likely to have a MEGA, MIDI or a BLADE fuse which are not appropriate for protecting Lithium batteries. MEGA, MIDI or BLADE fuses are ideal for use with Lead-acid batteries and protecting loads from chargers. But they do not have the right blowing characteristics to protect your system from the power of a lithium battery.
LithiumPro Batteries have very powerful and advanced Battery Management Systems (BMS) that are designed to protect against short circuit, reverse polarity and over current scenarios but this is NO substitute for having a correctly sized mechanical primary battery fuse in a dead short scenario.
Its critical the fuse has a fast-acting element and the appropriate Ampere Interrupt Capacity (AIC) designed to blow quickly and safely opening the circuit so the current can no longer flow. High quality MEGA and MIDI fuses only have a maximum AIC rating of 2000A which is not high enough to support lithium systems.
For safety and compliance, only use reputable fuse brands such as Blue Sea, Bussmann, Littelfuse, Mersen or Siemens with high AIC capacity ≥6000A. Never use cheap fuse alternatives from market places without datasheets. Original Equipment fuses will have the specification marked on the fuse itself. – High quality fusing is the most safety critical component in your whole electrical system.
Want to understand more about fusing READ MORE in our Essential Guide to Fusing Lithium Batteries
For our drop-in-replacement range of batteries with capacities up to 180AH we recommend the MRBF fuse kits as they can be secured directly to the positive battery terminal which offers the safest approach – by not leaving any cable exposed without being fused. They also have a high AIC rating of 10,000A which is essential to protect your system. Given the ‘drop-in-replacement’ range are often placed in height sensitive locations an ANL fuse & holder would also be an suitable alternative as long as it has and AIC rating of ≥ 6000A. Always check the fuses manufacturers datasheet for the Ampere Interrupt rating.
For our larger capacity batteries such as the 460AH-650AH we only recommend using a Class T or NH fuses.
Ensure you protect your lithium battery and the system by adding a high-quality primary battery fuse with the a suitable interrupt capacity. IMPORTANT: Only use notable brand fuses and not cheap fuses from various online market places.
Harness the suns endless supply of free energy with solar panels and using a 'MPPT' 'Charge Controller to charge your battery
Charge your battery by connecting to the grid. Fit a 'MAINS' Charger that supplies a regulated voltage.
Capture the surplus power created by your vehicles alternator by fitting a 'DC-DC' Charger
Is our free technical support program designed to assist LithiumPro customers with their battery installation. Ensuring their batteries are setup safely and efficiently to run their off-grid system. We appreciate it is a complex field to navigate, batteries, fuses, chargers etc. If you need help designing your system, installing your battery safety to your existing electrical system, or you just require help configuring your chargers to a LithiumPro battery. When you are ready to Install we will be here to support. If installation is not for you - we have an approved list of Authorised installers ready to do the work for you. We have expert technicians that will even travel to you.
Here at LithiumPro Energy, we pride ourselves on delivering products of the highest quality, backed by rigorous testing and internationally recognised certification.
All SMARTCOMM SERIES batteries have undergone full ECE R10 certification, including assessment of electromagnetic compatibility (EMC) and our manufacturing processes under Conformity of Production (CoP). This ensures every battery produced consistently meets the same high standards as the originally tested units. As a result, our products carry the E-mark (E24) approval, demonstrating compliance with European automotive regulations.
E-mark certification is essential for vehicle manufacturers and converters operating under Whole Vehicle Type Approval, providing confidence that our batteries can be integrated into compliant electrical systems without compromising safety or performance.
In addition to ECE R10, all LithiumPro Energy products are designed and tested to meet relevant UK and EU regulatory requirements, including UKCA, CE, RoHS, EMC, and RED directives, ensuring full legal compliance for sale and installation across these markets.
At cell level, we exclusively use high-grade LiFePO₄ prismatic cells sourced directly from Tier 1 manufacturers. These cells are certified to internationally recognised safety standards including UL1642, UL1973, and UL9540A, validating their performance in areas such as electrical safety, thermal stability, and fire propagation resistance.
To maintain full traceability and quality assurance, all cells are procured directly from manufacturers rather than through third-party distributors.
Lithium Iron Phosphate batteries are classified as Class 9 hazardous materials for transport. Therefore, all LithiumPro Energy batteries are tested and certified to UN38.3, ensuring they meet strict requirements for safe transportation by road, rail, and sea, including packaging, handling, and labelling standards.
SAFETY INSTRUCTIONS
• Before use read & follow instructions provided by the manufacturer.
• Always fuse your lithium battery with an appropriate battery fuse with a high interrupt capacity threshold. LithiumPro Energy recommends MRBF fuses with an AIC of ≥ 10,000A
• Do not expose the battery to direct sunlight or extreme temperatures.
• Do not install lithium batteries in engine bay locations. They are not suitable to operate in such extreme temperatures.
• Do not disassemble the battery. Opening the battery will VOID the warranty
• Do not short circuit the battery.
• Store the battery in a well ventilated area.
• Use a recommended DC-DC charger if charging from alternator sources set to (LiFePO4) profile.
• Do not immerse the battery in water.
• Do not crush, incinerate or modify the battery.
• Recycle the battery according to local regulations.
| ELECTRICAL SPECIFICATIONS | ||||
| Model | 105 ULTRAVOLT V2 | 175AH ARCTICXTREME V2 | 280AH SEATBASE V2 | 460AH ENDURAVOLT |
| Nominal Voltage | 12.8V | |||
| Nominal Capacity | 105ah | 175ah | 280ah | 460ah |
| Energy | 1344Wh | 2240Wh | 3584Wh | 5888Wh |
| Active Balance Current | 1-5A | |||
| Self Discharge | <3% per month | |||
| Wireless Connectivity Protocol | Low Energy Bluetooth 5.0 | |||
| CANBus Connectivity | RJ45/RS485 PORTS x2 BMS Firmware supports VICTRON, NMEA, CZONE, BCA MONTANA, GARMIN, SAVVY VAN | |||
| Charging & BMS Shutdown | Remote panel mountable MOS On/Off switch + Battery mounted On/Off control | Remote panel mountable MOS On/Off switch + Battery mounted On/Off control | Remote panel mountable MOS On/Off switch + Battery mounted On/Off control | Battery mounted On/Off switch |
| MECHANICAL SPECIFICATIONS | ||||
| Model | 105 ULTRAVOLT V2 | 175ah ARCTICXTREME V2 | 280ah SEATBASE | 460ah ENDURAVOLT |
| Dimensions (LxWxH) mm | 280x175x189 | 357x176x189 | 320x280x180 | 522x269x220 |
| Weight | 10kgs | 15kgs | 29kgs | 38kgs |
| Cycles | ≥4000 @ 80% DOD | ≥4000 @ 80% DOD | ≥8000 @ 80% DOD | ≥4000 @ 80% DOD |
| IP Rating | IP65 (if not using CANbus) | IP65 (if not using CANbus) | IP54 | IP65 (if not using CANbus) |
| Terminal Type | SAE Brass post with M8 threaded Insert | SAE Brass post with M8 threaded Insert | M8 threaded Insert | M8 threaded Insert |
| Cell – Prismatic (LiFePO4) | EVE LF105 | EVE LF173 | EVE LF280K | EVE LF230 |
| SAFETY & BMS PROTECTION SPECIFICATIONS | |||||
| Model | 105 ULTRAVOLT V2 | 175 | 280 | 460 | |
| Max Continuous Charge Current | 100A Recommended ≤75A | 200A Recommended ≤75A | 250A Recommended ≤75A | ||
| Max Continuous Discharge Current | 150A | 200A | 250A | ||
| Peak Discharge | 170A (5 secs) | 260A (5 secs) | 300A (5 secs) | 300A (5 secs) | |
| Discharge Protection cut-off | 10V | ||||
| Over Charge Protection cut-off | 14.6V | ||||
| Cell Balancing Voltage | 3.5V | ||||
| Short Circuit Protection | 1000A <500uS | 1200A <500uS | 1500A <500uS | 1500A <500uS | |
| TEMPERATURE SPECIFICATIONS | |||
| Storage Temperature | -20 ~ 60ºC | ||
| Discharge Temperature | -20 ~ 60ºC | ||
| Charge Temperature (Heater Assisted) | -20 ~ 60ºC | ||
| RECOMMENDED (LIFEPO4) CHARGING SPECIFICATIONS | |
| Charging Voltage (CCCV) | 13.8v-14.6V (Optimal 14.4V) |
| Float Voltage | 13.3-13.9V |
| Charging Current | 0.25C – Example 100Ah ~ 25A (See spec sheet for battery model) |
Parallel & Series Connections | Max 8 Max 4 (48V) |
