£1,199.99

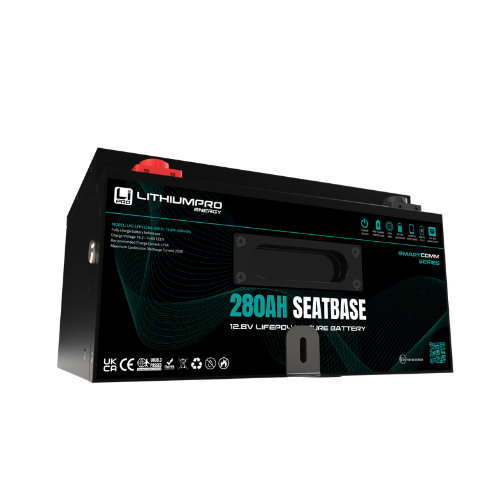

12v 280ah Seatbase lithium battery
Introducing the ALL NEW 12V 280Ah Seatbase Lithium Battery, the UK’s most powerful seat base battery. Packed with advanced, industry-leading technology, this battery has a real-world capacity of >300AH and is specifically designed to fit neatly under the swivel seat of your leisure vehicle. It’s compatible with the VW T6.1, New Ford Custom, VW T7, Sprinter, MAN, Renault, and all Fiat Ducato motorhome models. Convenient scoop handles on each side allow for quick and easy installation. It also ships with optional fixing brackets to securely mount to any seat base floor or frame. No strapping required. This battery is the ideal choice for van converters aiming to go ‘GAS-LESS’ as the SEATBASE offers continuous discharge capability of 3200W to power most household appliances.
The 12V 280Ah Seatbase Lithium Battery delivers an impressive 250A/3200W continuous discharge capacity, making it the perfect choice for powering air fryers and induction hobs effortlessly when paired with a suitable inverter. Plus, it provides ample reserve capacity to support other off-grid adventures.
Engineered with cutting-edge automotive cell technology, this battery boasts an outstanding cycle life of over 8,000 cycles, far surpassing the 3,000 cycles offered by other seatbase manufacturers. Designed for performance and longevity, it’s the ultimate solution for those seeking seamless ‘plug & play’ integration with Victron, innovation, reliability, and high performance off-grid energy.
This state-of-the-art lithium battery is part of a range developed by Lithium Pro Energy called SMARTCOMM SERIES offering advanced market-leading capacity, power and safety features embedded within the battery as standard;
DOWNLOADS
280AH SEATBASE – DATASHEET v1.0.5
280AH SEATBASE – INSTALLATION GUIDE
SMARTIQ BMS (Battery Monitoring System) APP can be downloaded from the Google playstore for Android or the Applestore
For Victron GX or NMEA ‘Plug & Play’ communication make sure you add a SMARTCOMM SERIES CABLE to your order
12v 280ah Seatbase lithium battery
One of the unique features of the SMARTCOMM SERIES is the latest onboard safety mechanism, which protects the battery and upstream connected electronics from dangerous arcs and sparks caused by powerful inrush currents when connecting to high-powered inverters. This 280Ah Seatbase battery, equipped with an advanced proprietary 250A BMS, which has the capability to run any household appliance up to 3200W when connected to a capable inverter, allowing you operate a ‘GASLESS’ system with plenty of spare capacity.
The SMARTCOMM SERIES from LithiumPro offers seamless Plug & Play integration via CANBus, allowing these batteries to communicate effortlessly with inverters, chargers, VictronGX, Ekrano, and any NMEA2000 compliant head unit, including CZONE, SIMRAD, and RAYMARINE. This enables the sharing of live system data for optimal performance and enhanced monitoring capabilities.
This battery is a genuine ‘PLUG & PLAY’ direct replacement for your lead-acid battery. If your motorhome or caravan has a lead-acid (CCCV) Constant Current Constant Voltage based charger that charges between 14.2v -14.6v you can install this battery and it will charge just fine, without the need to fit any other components. It will fit in exactly the same place as your old 95-110ah Lead acid battery and will charge using your existing CCCV charger.
Of course, should you wish to upgrade to a more powerful, dedicated lithium charger with a LiFePO4 profile, it will charge much faster and more efficiently, but it is NOT a requirement with our batteries. See here for dedicated lithium chargers.
This state-of-the-art lithium battery is part of a new range from Lithium Pro Energy called SMARTCOMM SERIES offering market-leading features embedded within the battery as standard.
One of the many unique features of the SMARTCOMM SERIES is the latest onboard safety mechanism, which protects the battery and connected electronics from dangerous arcs and sparks caused by powerful inrush currents when connecting to high-powered inverters. This powerful 280ah Seat base battery, is equipped with an advanced proprietary 250A BMS, which has the capability to run any household appliance up to 3200W continuously when connected to a capable inverter, allowing you to run high powered devices from a single lithium battery, saving the need to purchase two lithium batteries.

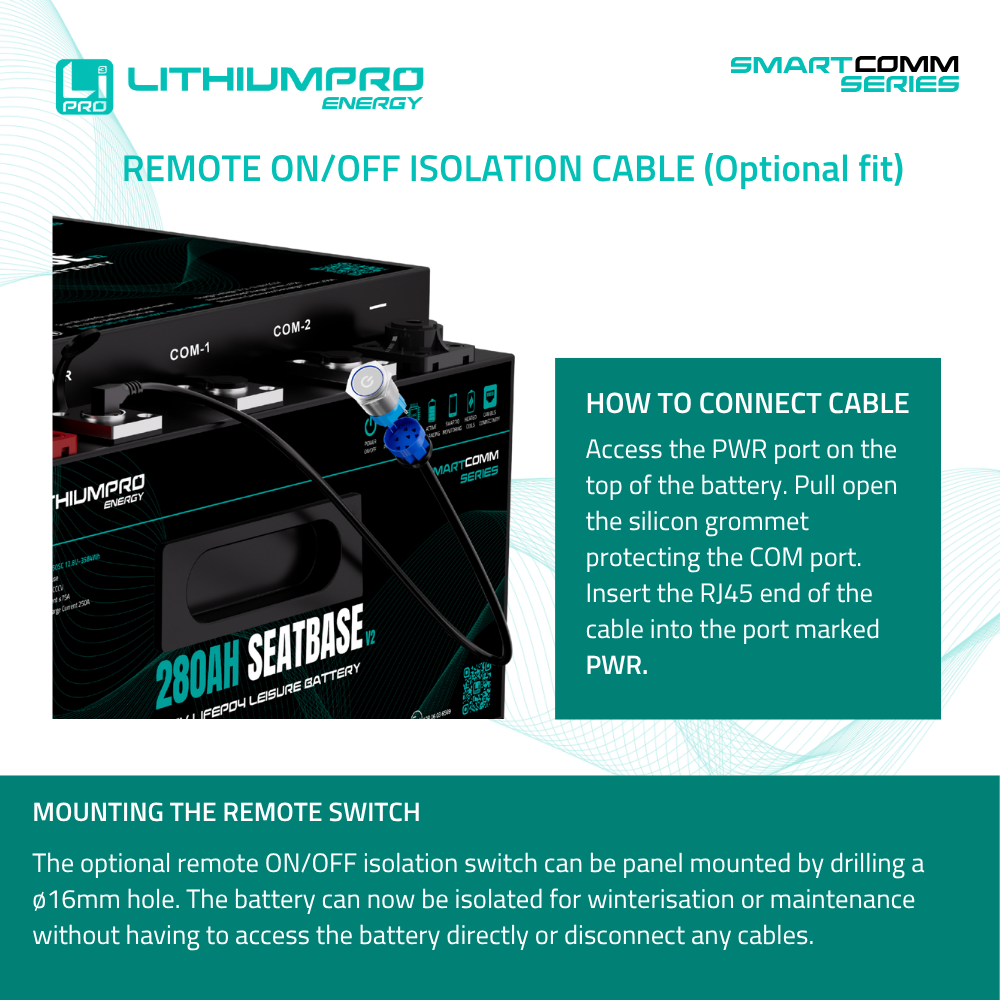

Additionally, the new integrated battery isolation safety feature enables you to completely isolate your battery from its loads when maintenance is required, ensuring convenience and safety. Alternatively, you may wish to simply winterise your system at the touch of a button.
All SMARTCOMM SERIES batteries have our latest intelligent self heating technology on-board that allows the battery not only be discharged in sub-zero conditions but to more importantly also be CHARGED in sub-zero climates.
Is our free technical support program designed to assist LithiumPro customers with their battery installation. Ensuring their batteries are setup safely and efficiently to run their off-grid system. Need advice on how to connect your battery to your existing electrical system ? Or help setting up your chargers to a LithiumPro battery. When you are ready to Install we will be here to support.
Using the latest Bluetooth 5 technology on your IOS or Android device you can pair to a SMARTIQ SERIES battery for real time data monitoring.
Whether your system is connected in SERIES or PARALLEL with the SMARTIQ APP you can monitor your system overview data all on a single screen
The BMS Battery Management System controls all battery parameters, logging and logs the faults when it has had to intervene for safety and help you use your battery more efficiently.
No more guessing - Get live data showing the % State of Charge SOC of your battery and how long till your battery will be to fully charged or completely discharged
Harness the suns endless supply of free energy with solar panels and using a 'MPPT' 'Charge Controller to charge your battery
Charge your battery by connecting to the grid. Fit a 'MAINS' Charger that supplies a regulated voltage.
Capture the surplus power created by your vehicles alternator by fitting a 'DC-DC' Charger

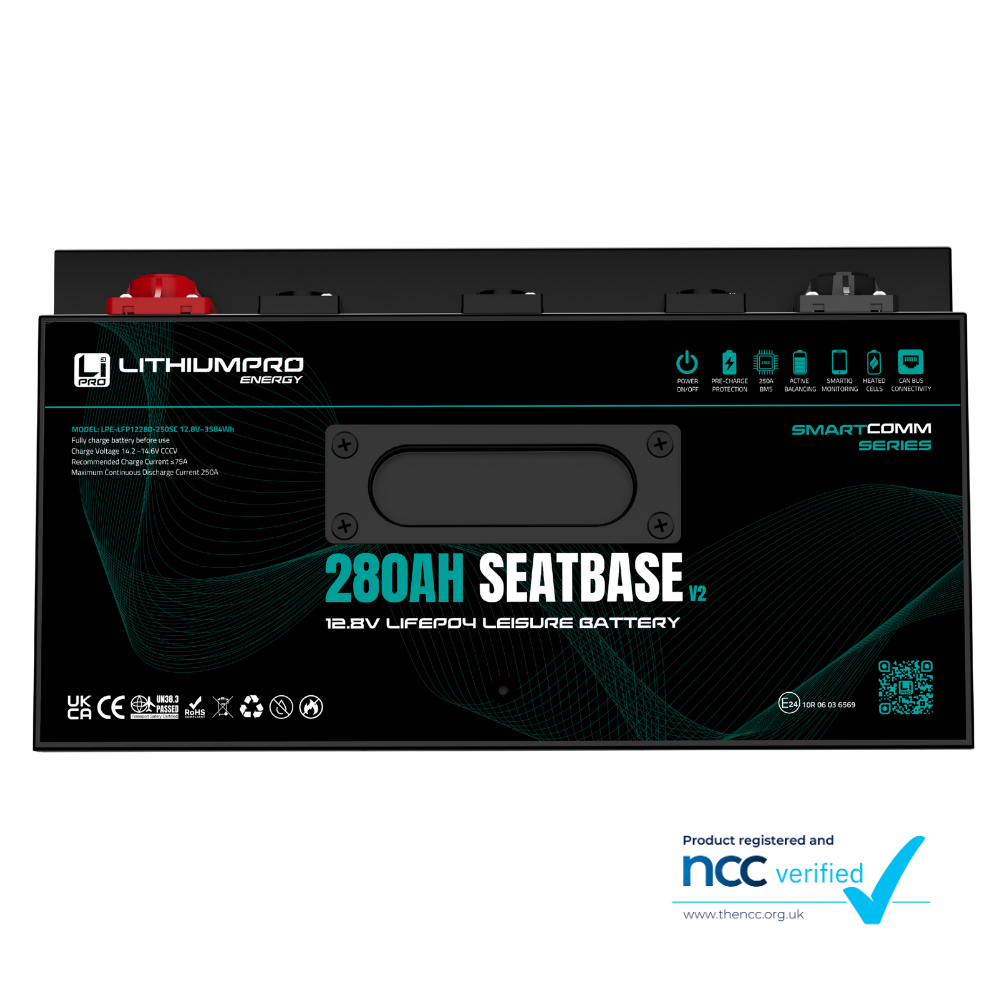

Here at LithiumPro Energy we pride ourselves on providing our customers with the very highest quality. All SMARTCOMM SERIES batteries are E-marked and perfect for manufacturers that are Type Approved. They have undergone rigorous testing procedures to ensure they comply fully with all UK & EU Legal Product Certification. Our batteries demonstrate compliance with UKCA, CE, ROHS, EMC & RED. The Prismatic cells used in the have obtained UL9540A certification, ensuring compliance with the stringent safety and performance criteria.
Lithium Iron Phosphate is classified as a Class 9 Hazardous material so in order to ship the battery via Rail, Road or Sea they have to adhere stringent handling, packaging and labelling requirements of the United Nations UN38.3 Certification.
SAFETY INSTRUCTIONS
• Before use read & follow instructions provided by the manufacturer.
• Do not expose the battery to direct sunlight or extreme temperatures.
• Do not disassemble the battery. Opening the battery will VOID Warranty Do not short circuit the battery.
• Store the battery in a well ventilated area.
• Only use a recommended (LiFePO4) Lithium charger Do not immerse the battery in water.
• Do not crush, incinerate or modify the battery.
• Recycle the battery according to local regulations.
| ELECTRICAL SPECIFICATIONS | |||
| Model | 175AH ARCTICXTREME V2 | 280AH SEATBASE | 460AH ENDURAVOLT |
| Nominal Voltage | 12.8V | ||
| Nominal Capacity | 175ah | 280ah | 460ah |
| Energy | 2240Wh | 3584Wh | 5888Wh |
| Active Balance Current | 1-5A | ||
| Self Discharge | <3% per month | ||
| Wireless Connectivity Protocol | Low Energy Bluetooth 5.0 | ||
| CANBus Connectivity | RJ45/RS485 x2 | ||
| Battery & BMS shutdown | Detachable MOS On/Off switch & on/off switch | On/Off switch | On/Off switch |
| MECHANICAL SPECIFICATIONS | |||
| Model | 175ah ARCTICXTREME V2 | 280ah SEATBASE | 460ah ENDURAVOLT |

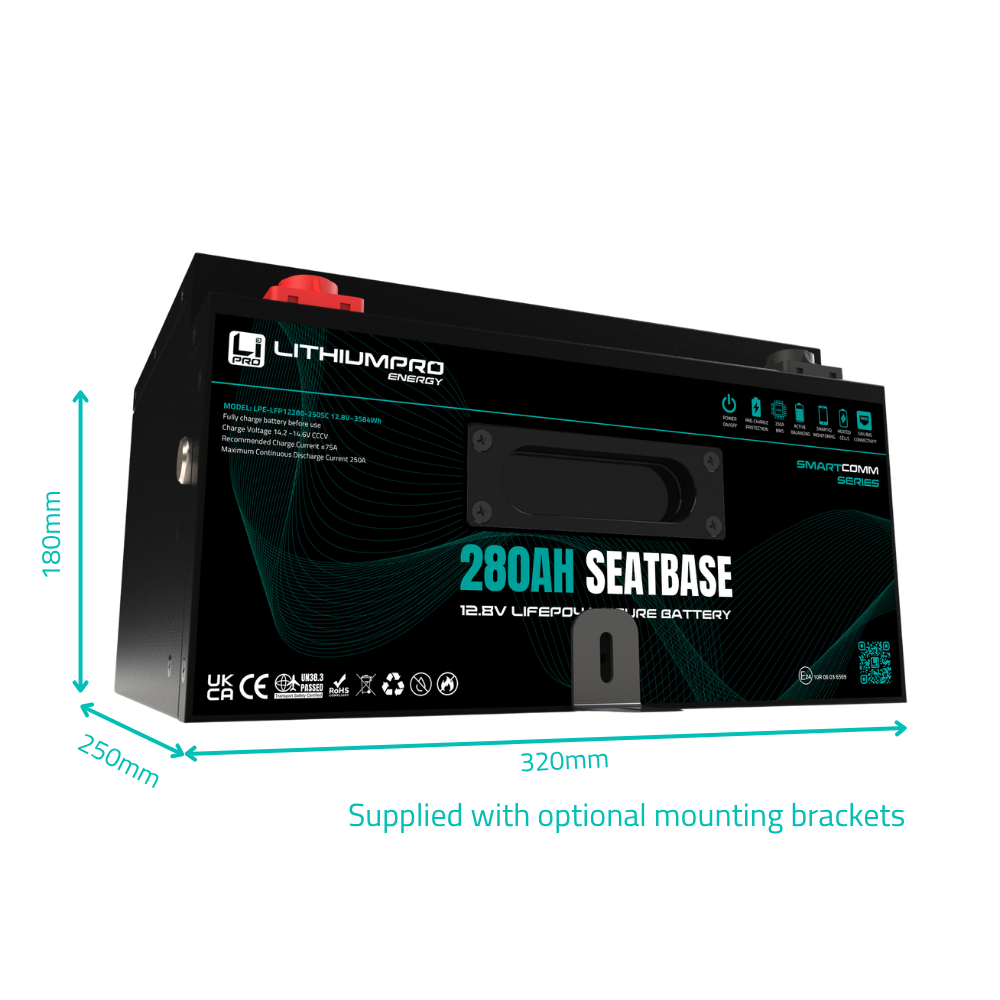

| Dimensions (LxWxH) mm | 357x176x189 | 320x280x180 | 522x269x220 |
| Weight | 15kgs | 29kgs | 38kgs |
| Cycles | ≥4000 @ 80% DOD | ≥8000 @ 80% DOD | ≥4000 @ 80% DOD |
| IP Rating | IP65 (if not using CANbus) | IP54 | IP65 (if not using CANbus) |
| Terminal Type | SAE Brass post with M8 threaded Insert | M8 threaded Insert | M8 threaded Insert |
| Cell – Prismatic (LiFePO4) | EVE LF173 | EVE LF280K | EVE LF230 |
| SAFETY & BMS PROTECTION SPECIFICATIONS | |||
| Model | 175 | 280 | 460 |
| Max Continuous Charge Current | 200A Recommended (75A) | 250A Recommended (75A) | |
| Max Continuous Discharge Current | 200A | 250A | |
| Peak Discharge | 260A (5secs) | 300A (5secs) | 300A (5secs) |
| Discharge Protection cut-off | 10V | ||
| Over Charge Protection cut-off | 14.6V | ||
| Cell Balancing Voltage | 3.5V | ||
| Short Circuit Protection | 1200A <500uS | 1500A <500uS | 1500A <500uS |
| TEMPERATURE SPECIFICATIONS | |||
| Storage Temperature | -20 ~ 60ºC | ||
| Discharge Temperature | -20 ~ 60ºC | ||
| Charge Temperature (Heater Assisted) | -20 ~ 60ºC | ||
| RECOMMENDED (LIFEPO4) CHARGING SPECIFICATIONS | |
| Charging Voltage (CCCV) | 14.2v-14.6V |
| Float Voltage | 13.3-13.9V |
| Charging Current | ≤ 75A – See spec sheet for battery |
Parallel & Series Connections | Max 8 Max 4 (48V) |
