LITHIUM LEISURE BATTERIES FOR CAMPERVANS
Lithium leisure batteries for campervans are becoming the most popular upgrade, as they offer many advantages over traditional lead-acid batteries when heading OFF GRID. At LithiumPro we offer the perfect drop-in replacement with the minimum amount least hassle. LithiumPro batteries are compatible with all brands of campervans. Adria, Autocruise, Autotrail, Autosleeper, Benimar, Burster, Cathargo, Concorde, Chausson, Coachman, Escape, Elddis, Frankia, Hillside, Hymer, Pilote, Rapido, Swift, Taylored, Vanworx etc.
Our low-profile lithium leisure battery is perfect for use in a Campervans as it will fit in exactly the same space as you existing Lead-Acid battery. It is identical in size, we use a global case size that mirrors your old AGM battery. Whether under the seat or hidden in the cabinetry. The ARCTICXTREME is the ideal ‘hassle-free’ drop-in-replacement. We also use solid brass terminal posts so you dont have to start changing your battery cables or connectors.
At LithiumPro Energy, we didn’t just build another under-seat battery – we rewrote the rules.
When van converters asked us to create a battery capable of powering fully GAS LESS systems in Ford Transit and Volkswagen T6/T7 vans, we knew compromise wasn’t an option. To comfortably run an induction hob, toaster, air fryer, lighting, and still enjoy Netflix at the end of the day – all without gas – you need serious capacity. That’s why we set the benchmark at a minimum of 300Ah for a reliable, real-world GASLESS setup.
So we built our SeatBase battery around the superior EVE 280Ah Prismatic cells – cells that consistently deliver over 300Ah in real-world testing, and more importantly, are rated for an extraordinary 8000 cycles at 80% DoD. That’s over 21 years of daily cycling – a lifespan that leaves standard lithium batteries in the dust.
But capacity and longevity are only half the story. We obsessed over every detail that makes life easier and safer for van builders and owners alike:
And because we’ve always led the industry standards rather than just meeting them, the LithiumPro SeatBase is fully ECE R10 Type Approved – the same rigorous automotive-grade certification demanded of vehicle manufacturers. This isn’t a tick-box CE mark; it’s independent verification that every battery leaving our factory meets the highest electromagnetic compatibility, vibration, thermal, and safety standards on the road today. It also proves we operate a audited Conformity of Production process – the same standard OEMs have to meet. In short: maximum safety, total peace of mind for our customers.
The LithiumPro SeatBase isn’t just a battery. It’s the most thoughtfully engineered, longest-lasting, and user-friendly under-seat power solution available for modern campervan conversions.
Ready to GO-GASLESS with total confidence? Welcome to the future of van life power.
When we set out to create the most powerful campervan battery on earth, we didn’t mess about. We went straight to EVE one of the world’s top cell manufacturers and requested their absolute flagship: the highest-capacity, highest-performing LiFePO4 prismatic cell in existence.

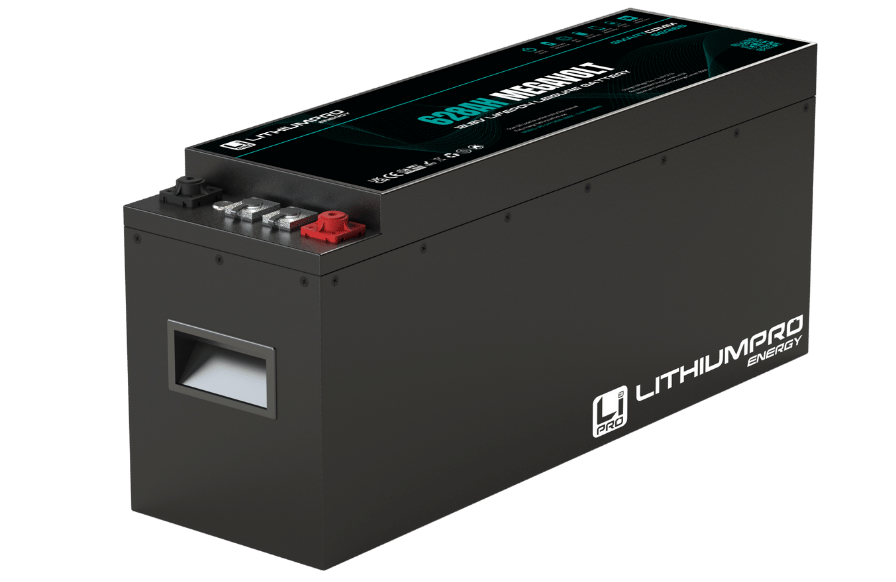

The result……? We built the LithiumPro 12V MEGAVOLT. Offering in excess of 650ah of Real-World useable capacity thats “MEGA” 8Kw of power. Enabling you to run any household appliance with our market-leading, battle hardened 300A BMS. Powering 3800W of power continuously. – that laughs in the face of battery anxiety.
Built to the same exacting, obsessive engineering standards as the SMARTCOMM SERIES range. Offering all the same industry-leading features and advanced safety features. Battery Isolation, Pre-Charge Protection, 5A Active balancing, Self Heating technology, Superior cell quality with 8000 cycles and CAN bus communications enabling multiple batteries to be linked together whilst seamlessly integrating with Multi Functional Displays such as Garmin, CZONE, Raymarine and Victron’s ECOsystem using DVCC.
This isn’t just a big battery – it’s freedom in a box. Built for full-time gasless vans, expedition vehicles, boats, tiny houses and off-grid living, or even whole-house backup, the MEGAVOLT laughs at power anxiety. Run multiple appliances at once air-conditioners, induction cooking, microwaves, washing machine, Starlink – and still have days (or weeks) of reserve.
Imagine heading into the wild for a month-long adventure and coming home with power to spare. No more nursing amps, no more silent hours, no more cutting your trip short. Just pure, unfiltered off-grid living on your terms.
The MEGAVOLT doesn’t just keep the lights on. It lets you forget you’re even off-grid.
Say hello to the MEGAVOLT….
In most cases you can continue to use your existing chargers with LithiumPro batteries. 99% of existing chargers in todays campervans are compatible with LithiumPro batteries from BCA, CBE, Dometic, Nordelectronica, Sargent, Schaudt EBL, Voltronic etc.
As we design & manufacturer our own batteries and are not an importer of off-the-shelf Chinese Lithium batteries, this means we are in control of the charging logic on the Battery Management System (BMS). We have broadened our charging parameters to ensure our batteries work with all lead-acid charging profiles . This is not the same for all lithium batteries so always check.
If your charger outputs a charge voltage from 13.8-14.6v. It will charge a LithiumPro battery just fine. If you are able select a charging profile on your charger select the closest setting to the optimal 14.4v
If you need help with this please call us on our technical support line, that can be found at the top of the page.
It is worth noting Lead-acid chargers work with our batteries but a dedicated Lithium based charger would always be preferable. Should you wish to upgrade to a Dedicated Lithium Charger and get the best out of your new investement please read this section here.
UK’S MOST POWERFUL LITHIUM BATTERY IN A H8 DIN SIZE BATTERY CASE
200A CONTINUOUS DISCHARGE CAPABILITY
RUN A 2500W CONTINUOUSLY
SMARTCOMM SERIES WITH CANBUS RS485 CONNECTIVITY COMMUNICATE DIRECTLY WITH VICTRON GX OR NMEA 2K DEVICES
UK’S MOST POWERFUL SEATBASE LITHIUM BATTERY
250A CONTINUOUS DISCHARGE CAPABILITY
RUN A 3200W CONTINUOUSLY
SMARTCOMM SERIES WITH CANBUS RS485 CONNECTIVITY COMMUNICATE DIRECTLY WITH VICTRON GX OR NMEA 2K DEVICES
UK’S MOST ADVANCED LITHIUM BATTERY
250A CONTINUOUS DISCHARGE CAPABILITY
RUN A 3200W CONTINUOUSLY
SMARTCOMM SERIES WITH CANBUS RS485 CONNECTIVITY COMMUNICATE DIRECTLY WITH VICTRON GX OR NMEA 2K DEVICES
Is our free technical support program designed to assist LithiumPro customers with their battery installation. Ensuring their batteries are setup safely and efficiently to run their off-grid system. Need advice on how to connect your battery to your existing electrical system ? Or help setting up your chargers to a LithiumPro battery. When you are ready to Install we will be here to support.
At Lithiumpro we have designed 280AH Seat base battery specifically for use under campervan seat locations. This tiny yet extremely powerful seatbase battery has been configured to fit perfectly underneath the seat, in a void generally only reserved for housing wiring, fuses and relays. We have made uses of this free space by designing a battery that perfectly fills the space under your swivel seat. Whether its a VW T5, 6 or the new 7, the MAN, Sprinter or even the new Ford Custom. See the installation diagram here.
The 12v 280ah Seatbase battery has optional bracket fixings, supplied in the box, that bolt to the sides of the seatbase battery and can be used to securely fasten it to the seat base frame in seconds. Making installation for the trade or self builder quick and easy with no requirement to invent creative ways to strap the battery down.
Inside, we only use premium, traceable Grade A ‘EVE’ Cells in our all of our range, making this 280AH seat base the MOST powerful seatbase battery in the UK market. The incredible quality of the EVE LF280K prismatic cells are so superior the real world ah capacity is in excess of >305ah. The cells inside other seatbase batteries are designed to last 3000 cycles at 80% Depth of Discharge, whereas the LithiumPRO Seatbase provides over double the cyclic capacity upto 8000 cycles @ 80% DoD.
Like all our batteries, they come with a 5 year warranty and all units are fully serviceable. None of our batteries have glued cases. Glued cases means they have to be smashed opened to gain access for warranty work. We only use cases with removable tops to ensure we have a sustainable approach to servicing and maintenance. All batteries come with 5 year warranty and an expected life-span of in excess of 10+ years.
LithiumPro have pioneered many new safety features in the SMARTCOMM SERIES range and we offer them as standard on our batteries.
TYPE APPROVAL: Certified to ECE R10, a requirement for road-legal installation. Mandatory in the UK for OEM and installers in motorhomes, campervans, caravans and commercial vehicles.
PRECHARGE PROTECTION – connect seamlessly with large inverters or devices with large inductive loads. No more sparks and arcs due very high inrush currents which can damage your battery and any connected devices. We integrated advanced precharge resistor curcuit on board our BMS to prevent these issues.
AUTO-HIBERNATION – Designed to save battery life and enhance performance. The BMS automatically enters hibernation mode after 24 hours of inactivity, reducing power consumption.
ON/OFF POWER ISOLATION – offers many safety benefits along with offering improved functionality. Isolating the battery terminals means our batteries are safer during transportation and can be safely worked on during vehicle maintenance, but also being able to isolate the power means you can winterise you battery at the touch of a button, safe in the knowledge no loads can drain it.
HEATED CELLS – Our proprietary advanced heated cells technology ehich enables your battery to be safely charged in sub zero conditions. Providing the flexibility and functionality to use your battery safely in any climate without affecting its cell longevity.
LithiumPro has not only pioneered industry-leading safety features in the SMARTCOMM SERIES range but is also continuously developing advanced innovations.
One of our latest advancements is ACTIVE BALANCING, a cutting-edge feature embedded directly into our new BMS. Unlike external plug-in balancers that operate independently, our integrated system ensures seamless, real-time balancing.
When cells undergo frequent charge and discharge cycles with high currents, even top-grade A lithium cells can experience voltage drift over time. Our precision ACTIVE BALANCING technology dynamically adjusts balancing currents between 1A and 5A, redistributing energy efficiently to maintain perfect cell voltage alignment. This results in faster charging, maximized capacity, and extended battery lifespan—ensuring your battery remains at peak performance for years to come.
Ask the NCC. We were the first on their verified list of Lithium battery suppliers and still remain the only company to offer the DIN size battery that fits under your swivel seat. Click below to see the NCC list.
LithiumPRO is the market leader for High Performance Lithium Batteries. Making them the ideal choice for use with motor movers. Designed and engineered to handle significant inductive loads that your battery experiences when using your motor mover. LithiumPRO are proud to announce that our SMARTIQ SERIES Range has been audited by the National Caravan Council (NCC) and recognised as the top-performing Class A Lithium Battery.
At LithiumPro, we design and engineer our own Battery Management Systems (BMS) rather than relying on generic, off-the-shelf solutions. This allows us to develop custom functionality tailored specifically to the needs of our markets.
One key innovation is our re-engineered BMS, designed to accept a broader voltage range, making our batteries a true drop-in replacement for lead-acid systems. As long as your existing lead-acid charger operates within 13.8V to 14.6V, our batteries will charge seamlessly—eliminating the need for costly charger upgrades.
This means you can upgrade to lithium power with minimal changes to your current setup, saving both time and money while enjoying the superior performance of LithiumPro batteries.
With our onboard Active Balancing Module – An advanced variable 1–5A active balancer maintains optimal balance among the Grade-A LiFePO4 cells by distributing voltage between cells during charging. Enhancing performance, extending lifespan, and ensures a perfectly balanced battery ever charge no matter what charger you use.
In our entire product range, we use only serviceable battery cases, making them fully repairable. No more breaking open sealed cases for maintenance or repairs. Our design ensures easy accessibility, allowing for servicing and upgrades with the latest BMS technology. As technology evolves, you’ll stay up-to-date. We’re future-proofing both our batteries and your investment.
As part of our quality control process, each battery undergoes a complete charge and discharge cycle before leaving our factory. This meticulous procedure ensures that every battery delivered to you is in optimal condition and ready to perform at its best.
At Lithium Pro Energy, we prioritise the safety and quality of our batteries. That’s why all our Lithium Pro batteries have undergone thorough testing and certification, including CE, UKCA, ROHS, RED, and UN38.3. These stringent safety tests ensure that our batteries meet the highest industry standards. All SMARTCOMM SERIES batteries are E-marked TO ECE-R10 and have full Type-Approval for use by OEM’s.
By integrating cutting-edge Bluetooth 5.0 technology into our SMARTIQ SERIES batteries users can effortlessly connect their battery to a smartphone or tablet. Once connected, real-time data monitoring of becomes possible. Gain valuable insights into your battery performance. Creating the ability to optimise your usage and the batteries long-term health.
Download the free SMARTIQ BMS App, available for both IOS and Android platforms, and unlock a world of live data monitoring. Keep track of vital information such as voltage, wattage, temperature, amps, State of Charge (SOC) and an array of other features.
Our advanced Bluetooth technology establishes seamless communication with the Battery Management System (BMS) on board the battery. In case of exceeding usage parameters, the BMS acts as a safeguard, issuing warnings and sending notifications to your device. When necessary, the BMS automatically shuts down the battery to protect itself.
No special charger is required. Any normal lead-acid battery charger designed to output a Constant Voltage Constant Current (CCCV) charge profile, which 95% of chargers do, then this is fine and safe for LithiumPro batteries. Many battery chargers will have pre-programmed settings for different battery chemistries. For Lithium batteries, select the ‘LiFePO4’ profile or the closest charge profile between 13.8-14.6v. Optimal is 14.4V.
Of course, should you wish to upgrade to a lithium based charger, we would recommend this, as it will charge faster and more efficiently, whilst offering more enhanced protection features during charging, thus preserving the life of you battery.
You can charge your Lithium battery using any or all of the three simple ways listed below:-
1. Harness your alternator’s surplus power to deliver a steady 14.4v charge voltage. Click here for DC-DC Chargers
2. Using a MPPT Solar Charge Controller, you can charge your leisure batteries at a regulated voltage using your solar panels ability to harness the suns energy. Click here for Solar Charge Controllers
3 Using a Mains hook-up charger, you can use a domestic 240v electricity supply to charge you leisure batteries via hook-up or shore power. Click here for Mains Chargers
IMPORTANT: When you first receive your battery, fully charge it until you get a ‘Cell Over Voltage’ (COV) notification. This indicates the battery is fully charged. Then, complete a full discharge until you get a ‘Cell Under Voltage’ (CUV) notification, showing the battery is fully discharged.This process allows your Battery Management System (BMS) to calibrate the State of Charge (SOC) in your app. The BMS will then learn to provide more accurate data, understanding both the 0% and 100% charge parameters.
It is recommended to charge your battery at ≤0.5C (0.5 times the battery’s rated capacity). For instance, if the battery has a capacity of 100Ah, the recommended charging current would be ≤50 amps. Please observe the maximum charging capacity listed on your battery.
Your Lithium Battery with a Constant Current Constant Voltage charger CCCV with a LiFePO4 charging profile.
Absorption should be set to 14.2-14.6v
Float should be set to 13.5-13.9v
De-sulfation/Equalisation should be switched off
Most Victron chargers already have a Lithium charging profile. However, should you wish to personalise your settings, please use the following;
Absorption voltage: 14.4V
Absorption time: Recommended setting is half an hour per 100ah of LiFePO4 battery (for example if you have 2x 150ah batteries select 90mins).
Float Voltage: 13.5V
Equalisation voltage: This must be disabled on all Lithium batteries as this can damage the battery with pulses of high voltages. This is designed for lead acid batteries to add with desulfation.
Temperature compensation: This should also be disabled on Lithium batteries.
Charged Voltage: This is where your battery is considered fully charged – Lithium batteries should be set to 14.4V for Victron equipment.
Low Temperature cut-off: The Drift batteries have low temperature charging protection built into the battery. You can leave this off.
Discharge Floor: 0%
Tail Current: This is the minimum current at which the Smart Shunt considers charging or discharging finished. We recommend 4%.
Peukert Exponent: Not required – this is for Lead Acid batteries.
Yes our SMARTIQ Series batteries are all ‘Drop-In’ Lead-Acid replacements. They are exactly the same size and shape as your old Lead-Acid batteries with the exact same terminal posts, so there is not need to change your electrical connections. They even have the base rail at the base to safely secure your battery in place. No need to look for inventive ways to strap a chinese replacement battery down. Click here for ‘Drop-In’ replacement batteries.
Yes, all LithiumPro Energy batteries can be connected in Series or Parallel up to a maximum of 4 units. Our SMARTIQ BMS APP with also be able to display your battery system as a whole in both Series or Parallel configurations.
WARNING: Never connect Lithium batteries of different brands, capacities, or ages together. All brands have unique Battery Management Systems (BMS), and mixing can cause imbalances in charging or discharging, potentially leading to overheating and premature failure. NOTE: Always fully charge each battery separately before connecting them in series or parallel. LithiumPro batteries can be configured as follows:
For series configuration, ensure each battery is charged to within 0.05V of each other to prevent imbalances.
For parallel configurations, use cables that are as short and identical in length as possible; batteries naturally equalise in voltage when connected this way.
Lithium batteries are extremely reliable technology. If cared for and looked after according to the manufacturers guidelines you should still be using your battery in 10+ years time. LithiumPro Energy only use traceable Grade-A Prismatic cell technology in all of their batteries which are capable of over 4000-8000 cycles at 80% depth of discharge. Meaning if used every day it will last between 11 -21 years, and still retain 80% of their rated capacity. We are so confident of all our batteries they are covered by our comprehensive 5 year manufacturers warranty.
Yes, you can safely discharge your Lithium Battery down to temperatures as low as -20ºc However, Lithium batteries cannot be charged in temperatures below zero unless they have heaters embedded within the battery. All LithiumPro Batteries have a safety feature built into the battery to prevent it charging below 0ºc. If you are using one of our SMARTCOMM SERIES batteries they are come with heaters on-board as standard Click here to see our ARCTICXTREME V2 Battery designed for charging in colder climates.
Yes, our SMARTCOMM range have been exclusively designed to fit under the front seat of your motorhome or campervan. You can chose from the UK’s most powerful 175AH DIN H8 ArcticXtreme V2 battery, or the UK’s safest and most powerful seat base battery ever the advanced 280ah SEATBASE. You can even fit 2 in parallel for 300AH under the seat of Fiat Ducatos, Peugeot Boxers, Citroen Relays, Merc Sprinter, VW T6, VW Crafter, Transit Custom. Click here to see installation guide.
When connecting batteries together for communication via CANbus ports, use standard RJ45 cable to link them and terminate last battery with the RJ45 termination plug provided. See diagram here.
12V 105AH LITHIUM LEISURE BATTERY ULTRAVOLT V2
Introducing the ULTRAVOLT our ‘Power House’ battery, engineered to supply substantial power to your appliances. This battery maintains a consistent and stable voltage even during demanding loads. As a result, it becomes the perfect choice for frequent inverter users, catering to campervans, motorhomes, boats, and various ‘off-grid’ applications.
What sets the ULTRAVOLT apart is its remarkable capacity of almost 2000Wh. This ensures a smooth operation of a 2000W Inverter. Our Premium Series batteries are equipped with cutting-edge Bluetooth 5.0 connectivity features, which are accessible through our SMARTIQ BMS APP. Allowing you to effortlessly monitor the battery’s performance and State of Charge parameters, making it easy to stay informed about its health and status.
| ELECTRICAL SPECIFICATIONS | |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 105Ah |
| Energy | 1344Wh |
| Internal Resistance | ≤10 mΩ |
| Efficiency | ≥99% |
| Self Discharge | <3% per month |
| Wireless Connectivity Protocol | Bluetooth 5.0 |
| MECHANICAL SPECIFICATIONS | |
| Dimensions (LxWxH) DIN H6 | 280x178x189mm |
| Weight | 10 Kgs |
| Cycles | ≥5000 @ 80% DOD |
| Case Material | ABS |
| Enclosure Protection | IP67 |
| Terminal Type | SAE Brass Post |
| Cell Chemistry (EVE-LF105) | LiFePO4 |
| BMS PROTECTION SPECIFICATIONS | |
| Max Continuous Charge Current | 150A Recommended (75A) |
| Max Continuous Discharge Current | 150A |
| Peak Discharge | 200A (10 Secs) |
| Discharge Protection cut-off | 10V |
| Over Charge Protection cut-off | 14.5V |
| Passive Cell Balancing Voltage | 3.5V |
| Short Circuit Protection | 900<500uS |
| TEMPERATURE SPECIFICATIONS | |
| Storage Temperature | -10 ~ 45ºC |
| Discharge Temperature | -20 ~ 60ºC |
| Charge Temperature | 0 ~ 60ºC |
| RECOMMENDED (LiFePO4) CHARGING SPECIFICATIONS | |
| Charging Voltage (CCCV) | 14.6V |
| Float Voltage | 13.3-13.9V |
| Charging Current | ≤ 75A |
| Parallel & Series Connections | Max 4 (48V) |
12V 175AH LITHIUM IRON PHOSPHATE BATTERY Part of LithiumPro’s SMARTCOMM SERIES the safest and most advance battery range to date, offering more advanced safety features and integration as standard. This battery is has been completely redesigned to provide more power in the same low profile design case (189mm high), yet its packed with more features than ever before.
| ELECTRICAL SPECIFICATIONS | |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 175Ah |
| Energy | 2240Wh |
| Internal Resistance | ≤10 mΩ |
| Efficiency | ≥99% |
| Self Discharge | <3% per month |
| Wireless Connectivity Protocol | Bluetooth 5.0 |
| CANBus / RS485 Connectivity | RJ45 ports x2 |
| Power Isolation | BMS isolation on/off switch |
| MECHANICAL SPECIFICATIONS | |
| Dimensions (LxWxH) DIN H8 | 357x176x189mm |
| Weight | 16.5Kgs |
| Cycles | ≥4000 @ 80% DOD |
| Case Material | ABS |
| Enclosure Protection | IP65 |
| Terminal Type | SAE Brass Post with m8 internal thread |
| Cell Chemistry | Prismatic – LiFePO4 |
| SAFETY & PROTECTION SPECIFICATIONS | |
| Max Continuous Charge Current | 200A Recommended (>75A) |
| Max Continuous Discharge Current | 200A |
| Peak Discharge | 260A (10Secs) |
| Discharge Protection cut-off | 10V |
| Over Charge Protection cut-off | 14.6V |
| Advanced Active Cell Balancing Current | 1-5A |
| Short Circuit Protection | 900<500uS |
TEMPERATURE SPECIFICATIONS | |
Storage Temperature | -10 ~ 45ºC |
Discharge Temperature | -20 ~ 60ºC |
Charge Temperature (Heater Assisted) | -20 ~ 60ºC |
RECOMMENDED (LIFEPO4) CHARGING SPECIFICATIONS | |
Charging Voltage (CCCV) | 14.2V-14.6V |
Float Voltage | 13.3-13.9V |
Charging Current | ≤ 75A |
Parallel & Series Connections | Max 8 Parallel |
Say hello to the all new 12V 280AH LITHIUM IRON PHOSPHATE SEATBASE BATTERY Part of LithiumPro’s SMARTCOMM SERIES the safest and most advance battery range to date, offering more advanced safety features and integration as standard. This battery is has been exclusively designed by LithiumPRO as the MOST powerful seat base battery on the market. The low profile design case (180mm high), fits under your swivel seat in your campervan. VW T6.1, Fiat, Ford, Peugeot< MAN, Sprinter and many more.
| ELECTRICAL SPECIFICATIONS | |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 280Ah |
| Energy | 3584Wh |
| Internal Resistance | ≤10 mΩ |
| Efficiency | ≥99% |
| Self Discharge | <3% per month |
| Wireless Connectivity Protocol | Bluetooth 5.0 |
| CANBus / RS485 Connectivity | RJ45 ports x2 |
| Power Isolation | BMS isolation on/off switch |
| MECHANICAL SPECIFICATIONS | |
| Dimensions (LxWxH) | 330x280x180mm |
| Weight | 29Kgs |
| Cycles | ≥8000 @ 80% DOD |
| Case Material | ABS |
| Enclosure Protection | IP20 |
| Terminal Type | M8 internal thread |
| Cell Chemistry | EVE Prismatic – LiFePO4 |
| SAFETY & PROTECTION SPECIFICATIONS | |
| Max Continuous Charge Current | 250A Recommended (<75A) |
| Max Continuous Discharge Current | 250A @ 25ºC |
| Peak Discharge | 260A (10Secs) |
| Discharge Protection cut-off | 10V |
| Over Charge Protection cut-off | 14.6V |
| Advanced Active Cell Balancing Current | 1-5A |
| Short Circuit Protection | 900<500uS |
TEMPERATURE SPECIFICATIONS | |
Storage Temperature | -10 ~ 45ºC |
Discharge Temperature | -20 ~ 60ºC |
Charge Temperature (Heater Assisted) | -20 ~ 60ºC |
RECOMMENDED (LIFEPO4) CHARGING SPECIFICATIONS | |
Charging Voltage (CCCV) | 14.2V-14.6V |
Float Voltage | 13.3-13.9V |
Charging Current | ≤ 75A |
Parallel & Series Connections | Max 8 Parallel |
Introducing the all new 12V 460AH LITHIUM IRON PHOSPHATE SEATBASE BATTERY Part of LithiumPro’s SMARTCOMM SERIES the safest and most advance battery range to date, offering more advanced safety features and integration as standard. This battery is has been designed by LPE for high power users that like to spend longer periods off-grid.
| ELECTRICAL SPECIFICATIONS | |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 460Ah |
| Energy | 5888Wh |
| Internal Resistance | ≤10 mΩ |
| Efficiency | ≥99% |
| Self Discharge | <3% per month |
| Wireless Connectivity Protocol | Bluetooth 5.0 |
| CANBus / RS485 Connectivity | RJ45 ports x2 |
| Power Isolation | BMS isolation on/off switch |
| MECHANICAL SPECIFICATIONS | |
| Dimensions (LxWxH) | 522x269x220mm |
| Weight | 38Kgs |
| Cycles | ≥4000 @ 80% DOD |
| Case Material | ABS |
| Enclosure Protection | IP67 |
| Terminal Type | M8 internal thread |
| Cell Chemistry | EVE Prismatic – LiFePO4 |
| SAFETY & PROTECTION SPECIFICATIONS | |
| Max Continuous Charge Current | 250A Recommended (<75A) |
| Max Continuous Discharge Current | 250A @ 25ºC |
| Peak Discharge | 260A (10Secs) |
| Discharge Protection cut-off | 10V |
| Over Charge Protection cut-off | 14.6V |
| Advanced Active Cell Balancing Current | 1-5A |
| Short Circuit Protection | 900<500uS |
TEMPERATURE SPECIFICATIONS | |
Storage Temperature | -10 ~ 45ºC |
Discharge Temperature | -20 ~ 60ºC |
Charge Temperature (Heater Assisted) | -20 ~ 60ºC |
RECOMMENDED (LIFEPO4) CHARGING SPECIFICATIONS | |
Charging Voltage (CCCV) | 14.2V-14.6V |
Float Voltage | 13.3-13.9V |
Charging Current | ≤ 75A |
Parallel & Series Connections | Max 8 Parallel |
Delivery is free to all mainland UK, with the exception of NI, Scotland and the isles. Our couriers charge a small premium to delivery to these locations. This will be calculated at checkout based on your postcode.
