Original price was: £1,300.00.£1,199.99Current price is: £1,199.99.
Introducing LithiumPro Energy’s 12v 210AH Lithium Battery twin pack. This is our premium most technologically advanced battery which comes bundled with onboard hardward enabling Real-Time data tracking of your batteries parameters. Utilising the latest Bluetooth 5.0 technology it provides the ability to monitor the Lithium batteries health, SOC State of Charge, Power consumption, remaining battery time, charging times etc.
LithiumPro’s 210AH UltraVolt battery comprises the latest EVE Grade A, LiFEPO4 prismatic cells. They provide power through an highly sophisticated (BMS) Battery Management System which allows up to 300A of continuous discharging to handle even the most demanding ‘off-grid’ requirements. The UltraVolt is one of the lightest batteries in it class at just over 10Kgs representing over a 66% saving on weight compared with a 100AH lead acid battery When this battery is purchased as TWIN PACK and joined together in Parallel, the power output capacity is doubled to 210Ah. The discharge capability then increases to a HUGE 300A with the DUAL BMS onboard meaning you will now be able to power a 3500W inverter with ease.
When purchasing the TWIN PACK you can take advantage of the further savings and get extra money OFF compared to buying two separately whilst still securing free postage on BOTH items.
The extremely lightweight, powerful, high performance Lithium Iron Phosphate (LiFEPO4) battery is ideal for use in Boats, Motorhomes, Campervans.

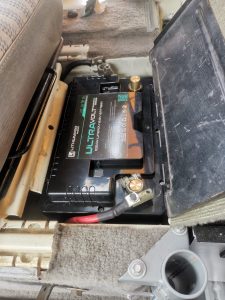

You can fit two Lithium Pro 105AH Ultravolt SMARTIQ SERIES batteries under the seat in Fiat Ducato’s, Peugeot Boxers, Citroen Relays, Merc Sprinter, VW Crafter, T5, T6 and Transit Custom. CLICK HERE TO SEE INSTALL
Lithium Iron Phosphate batteries (LiFePO4) can be used as a versatile alternative to 12v Lead-acid leisure batteries in most situations.
LithiumPro Energy SMARTIQ SERIES batteries all have DIN Standard size battery cases, that fit perfectly into your motorhome, caravan, campervan or boat. Our new generation of battery has the same size shell as your old lead-acid battery. Meaning they are identical in size, shape. They also feature standard brass terminals posts, so there is no requirement to change you battery leads. We have also retained the mounting rail at the base, to enable it to be safely and securely fixed into your battery tray. There is no need to find creative ways in which to securely mount your new lithium battery.
Choose LithiumPro Energy batteries for a hassle-free ‘Drop In’ Lead-Acid replacement
Here at LithiumPro Energy we pride ourselves on providing our customers with the very highest quality. All LithiumPro batteries have undergone rigorous testing procedures to ensure they comply fully with all UK & EU Legal Product Certification. Our batteries demonstrate compliance with UKCA, CE, ROHS, EMC & RED. The 105AH EVE Prismatic cells have obtained UL1642 and UL2580 certification, ensuring compliance with the stringent safety and performance criteria.
Lithium Iron Phosphate is classified as a Class 9 Hazardous material so in order to ship the battery via Rail, Road or Sea they have to adhere stringent handling, packaging and labelling requirements of the United Nations UN38.3 Certification.
SAFETY INSTRUCTIONS
• Before use read & follow instructions provided by the manufacturer.
• Do not expose the battery to direct sunlight or extreme temperatures.
• Do not disassemble the battery. Opening the battery will VOID Warranty Do not short circuit the battery.
• Store the battery in a well ventilated area.
• Only use a recommended (LiFePO4) Lithium charger Do not immerse the battery in water.
• Do not crush, incinerate or modify the battery.
• Recycle the battery according to local regulations.
| ELECTRICAL SPECIFICATIONS | |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 105Ah |
| Energy | 1344Wh |
| Internal Resistance | ≤10 mΩ |
| Efficiency | ≥99% |
| Self Discharge | <3% per month |
| MECHANICAL SPECIFICATIONS | |
| Dimensions (LxWxH) DIN H6 | 280x178x189mm |
| Weight | 10 Kgs |
| Cycles | ≥5000 @ 80% DOD |
| Case Material | ABS |
| Enclosure Protection | IP67 |
| Terminal Type | SAE Brass Post |
| Cell Chemistry (EVE-LF105) | LiFePO4 |
| BMS PROTECTION SPECIFICATIONS | |
| Max Continuous Charge Current | 150A Recommended (75A) |
| Max Continuous Discharge Current | 150A |
| Peak Discharge | 200A (10 Secs) |
| Discharge Protection cut-off | 10V |
| Over Charge Protection cut-off | 14.5V |
| Passive Cell Balancing Voltage | 3.5V |
| Short Circuit Protection | 900<500uS |
|
TEMPERATURE SPECIFICATIONS |
|
|
Storage Temperature |
-10 ~ 45ºC |
|
Discharge Temperature |
-20 ~ 60ºC |
|
Charge Temperature |
0 ~ 60ºC |
| RECOMMENDED (LiFePO4) CHARGING SPECIFICATIONS | |
| Charging Voltage (CCCV) | 14.6V |
| Float Voltage | 13.3-13.9V |
| Charging Current | ≤ 75A |
| Parallel & Series Connections | Max 4 (48V) |

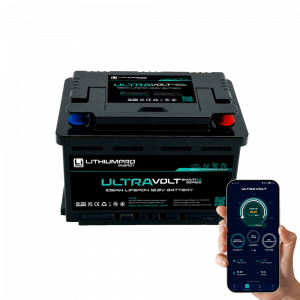

Using the latest Bluetooth 5 technology on your IOS or Android device you can pair to a SMARTIQ SERIES battery for real time data monitoring.
Whether your system is connected in SERIES or PARALLEL with our APP you can now monitor all your battery data on a single screen
The BMS Battery Management System controls all battery parameters, logging and logs the faults when it has had to intervene for safety and help you use your battery more efficiently.
No more guessing - Get live data showing the % State of Charge SOC of your battery and how long till your battery will be to fully charged or completely discharged
LITHIUM PRO ENERGY is Licenced Producer of Batteries in the UK BPRN09101
LITHIUMPRO ENERGY LTD
Company No. 13386185
VAT GB441069218
12V 105AH ULTRAVOLT – DIN H6 (LN3) – TECHNICAL DRAWING
