One of the many advanced and intelligent features of the SMARTCOMM SERIES range is they allow you to connect to other devices and equipment. When adding a hardwired SMARTCOMM cables into your setup, you gain the added flexibility to communicate to a wide range of devices. These cables enable ‘Plug & Play’ connectivity between SMARTCOMM SERIES batteries and Victron devices for example. Such as Inverters and the Cerbo & Ekrano GX.
Unlocking seamless communication between these critical components of your power system. SMARTCOMM SERIES batteries are able to exchange vital data using the SMARTCOMM-to-Victron-CANbus cable. This ensures real-time monitoring and management of your energy system, providing you with comprehensive insights into performance metrics and gain the ability to control operational parameters via the Victron VRM portal from anywhere in the world.
Alternatively, if you are using marine equipment that is NMEA 2000-compatible, such as displays, GPS units, and chart-plotters. By using the SMARTCOMM-to-NMEA cable, you can ensure that all your navigational and monitoring devices work harmoniously, allowing for real-time data sharing and comprehensive system monitoring. This connectivity streamlines the management of your marine electronics, ensuring you have accurate and timely information to optimise your maritime experience.
Simply plug your SMARTCOMM cable into port 1 of the battery and the other to a VE.CAN port on your VICTRON device, ie Cerbo GX or Ekrano GX to monitor & change parameters. See Below:
Once connected, you can monitor key battery parameters such as State of Charge (SOC), energy consumption, temperature, and individual cell voltages. Easily configure and monitor all charging sources via DVCC, set notifications and alarms, activate relays, and much more.

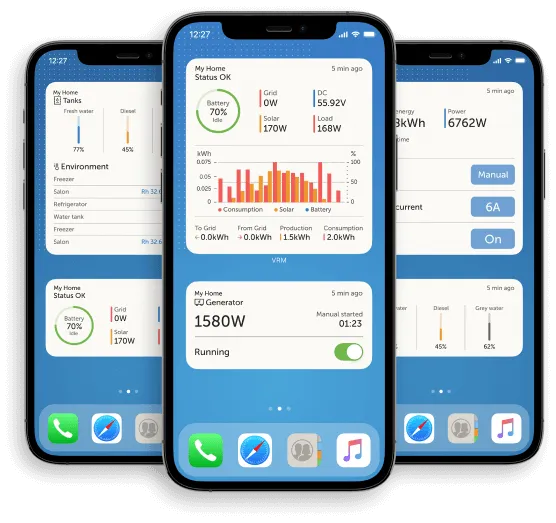

Using the Victron VRM portal you can manage and monitor your energy system remotely from anywhere in the world with an internet connection.
A 1.8 metre cable that enables ‘Plug & play’ connectivity with your LithiumPRO SMARTCOMM SERIES (SCS) battery and a Victron GX device or Inverter.

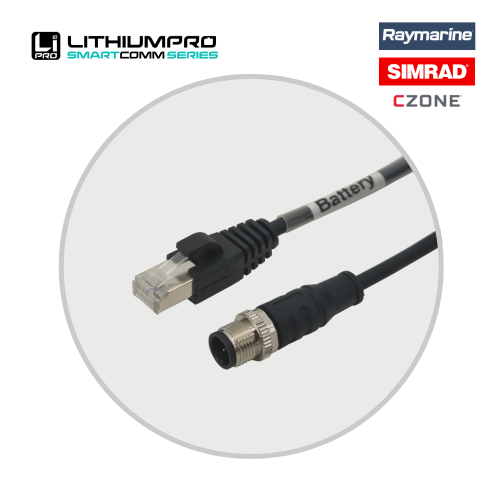

A 1.8 metre cable that enables ‘Plug & play’ connectivity with your LithiumPRO SMARTCOMM SERIES (SCS) battery and a NMEA 2000 complaint display such as SIMRAD, RAYMARINE and chart plotters.
NOTE: these cables can only be used with our SMARTCOMM SERIES range of batteries.
UK’S MOST POWERFUL LITHIUM BATTERY IN A H8 DIN SIZE BATTERY CASE
200A CONTINUOUS DISCHARGE CAPABILITY
RUN A 2500W CONTINUOUSLY
SMARTCOMM SERIES WITH CANBUS RS485 CONNECTIVITY COMMUNICATE DIRECTLY WITH VICTRON GX OR NMEA 2K DEVICES
UK’S MOST POWERFUL SEATBASE
LITHIUM BATTERY
250A CONTINUOUS DISCHARGE CAPABILITY
RUN A 3200W CONTINUOUSLY
SMARTCOMM SERIES WITH CANBUS RS485 CONNECTIVITY COMMUNICATE DIRECTLY WITH VICTRON GX OR NMEA 2K DEVICES
UK’S MOST ADVANCED LITHIUM BATTERY
250A CONTINUOUS DISCHARGE CAPABILITY
RUN A 3200W CONTINUOUSLY
SMARTCOMM SERIES WITH CANBUS RS485 CONNECTIVITY COMMUNICATE DIRECTLY WITH VICTRON GX OR NMEA 2K DEVICES
