Original price was: £599.99.£450.00Current price is: £450.00.
THE NEW ULTRAVOLT V2 IS DUE FOR RELEASE IN LATE DECEMBER – GET EARLY PRE-ORDER PRICE OF £450
VERSION 2 Will have a more advanced BMS with the following upgraded features:
* The ideal ‘Drop-in-Replacement’
* Certified to ECE-R10 standards – A required standard for all manufacturers of motorhome, campervan installations.
* External panel mountable ON/OFF battery isolation switch – for winterisation & maintenance.
* Auto-Hibernation to protect battery against deep discharging.
* Pre-charge Protection – Provides battery and downstream system protection during battery connection.
* 1-5A Variable Active Balancing ensures 100% capacity each and every charge.
* CANBus/RS485/NMEA Integration – PLUG & PLAY integration with VICTRON, GARMIN, BCA, CZONE, RAYMARINE and many more.
* Weighs just 9kgs
* IP65 RATED – Waterproof.

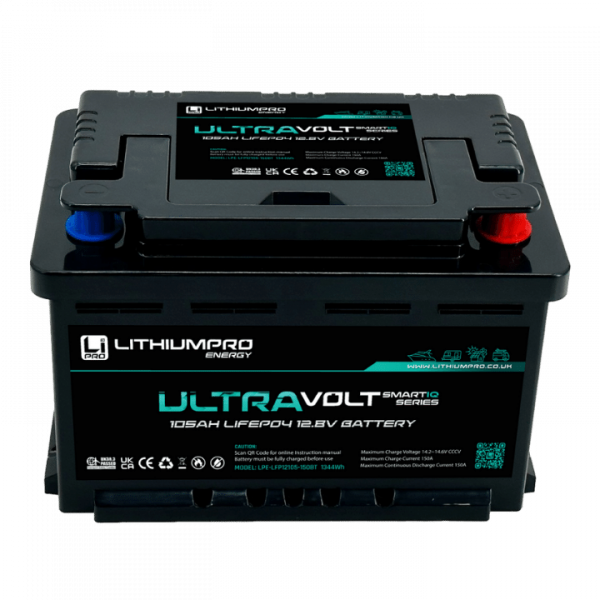

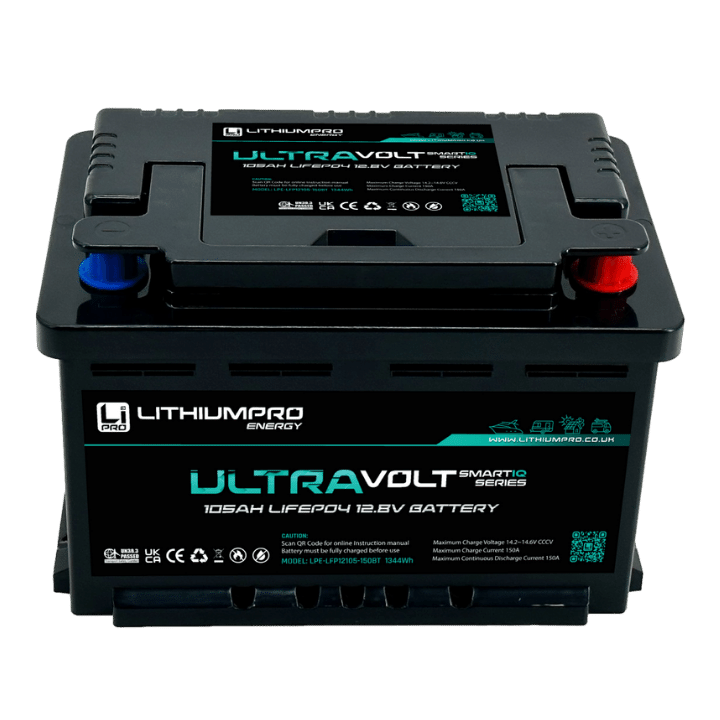

Introducing LithiumPro’s 12V Lithium Battery 105AH Ultravolt. This has been designed for power-hungry devices and applications. Using LithiumPro advanced proprietary BMS technology the ULTRAVOLT delivers up to 150 amps of continuous power, allowing you to run up to a 2000W inverter continuously from a single battery.
Our Premium SmartIQ Series features the latest Bluetooth 5.0 technology, offering a working range of up to 15m enabling you to monitor your batteries’ health in real-time. You can track the state of charge level, voltage, power, current, temperature, and much more. It can be downloaded from the Google playstore for Android or the Applestore. All LithiumPro SmartIQ SERIES batteries come with a full 5-year warranty and have an expected lifespan exceeding 10+ years.

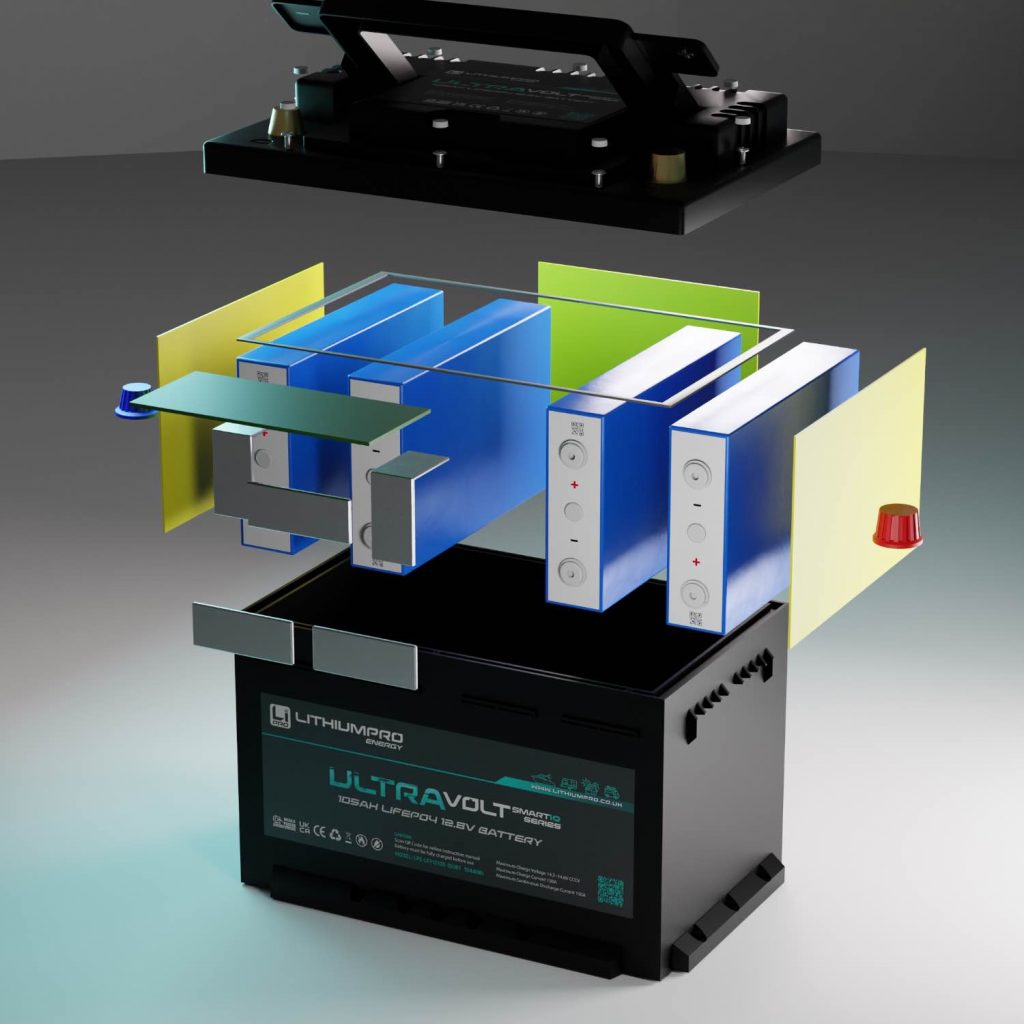

The ULTRAVOLT battery comprises 105Ah EVE LiFePO4 prismatic cells of the highest quality. LithiumPro only use traceable Grade A cells in all of their range. Designed and engineered in the UK specifically for the UK market, this battery case is a global standard SAE Automotive DIN standard with familiar brass terminal posts and the same base rail, allowing it to be secured into position just like before. It’s the perfect ‘drop-in’ replacement ideal for motorhomes, caravans, or camper van upgrades. It serves as a like-for-like replacement for a lead-acid battery in terms of size and is a genuine ‘PLUG & PLAY’ direct replacement, meaning you do not need to replace your existing battery cables or chargers. Simply remove your old lead-acid battery and replace it with the smaller, lighter, and more powerful lithium ULTRAVOLT, which weighs only 10kgs.
If your motorhome or caravan has a lead-acid CCCV-based charger that charges between 13.8V and 14.6V, you can install this battery and it will charge just fine, fitting in the same exact place as your old 95-110Ah lead-acid battery and charging using your existing CCCV charger set. Just change the charging profile to LiFePO4 on your solar charge controller if available. Due to LithiumPro’s advanced in-house BMS we have broadened the charging parameters accepted by our batteries. Hence LithiumPro Batteries are compatible with 99% of Lead-Acid chargers available in motorhomes and caravans such as BCA, CBE, Dometic, Nordelectronica, Sargent, Schaudt, Truma, Victron and Voltronic and many more all of which charge within the 13.8-14.6v. Note: This may not be the case for other lithium batteries brands.
Of course, should you wish to upgrade to a more powerful, dedicated lithium charger with a LiFePO4 profile, we recommend this as it will charge much faster and more efficiently, but it is not a requirement with our batteries. See here for lithium chargers
With dimensions of 280x178x189mm (LxWxH) the ULTRAVOLT battery fits perfectly under the seat in Fiat Ducato’s, Peugeot Boxers, Citroen Relays, Merc Sprinter, VW Crafter, T25, T3, Vanagon T5, T6, and Transit Custom. CLICK HERE TO SEE INSTALL
T25, VANAGON Installation
This Lithium battery is designed to fit under the seat base in the T25, T3 / Vanagon. See installation video by Campervan Culture.
WARNING!: During Vanagon installation the original VW metal battery cover MUST be removed to prevent battery terminals creating a short circuit.
We use a global DIN standard battery case, Offered in two sizes H6 and H8 which means they are exactly the same shape and height as your existing AGM battery.
So you can 'drop it straight in'.
We use traditional solid Brass terminal posts so you don't have to change your cables when connecting up our batteries. So you can 'drop it straight in'.
LithiumPro batteries are compatible with most *chargers, such as CBE, Dometic, Sargent, Schaudt, Victron. Select a profile closest to 14.2-14.6v and your existing charger will work fine. So you can 'drop it straight in'.
You dont have to think of inventive solutions to fit your LithiumPro battery, It has securing rail at the base enabling a safely secure battery 'So you can 'drop it straight in'.
Lithium Iron Phosphate batteries (LiFePO4) can be used as a versatile alternative to 12v Lead-acid leisure batteries in most situations.
Choose LithiumPro Energy batteries for a hassle-free ‘Drop In’ Lead-Acid replacement.
LithiumPro batteries can be charged with 99% of CCCV Lead acid chargers that charge between 13.8-14.6v. Our batteries can be charged with a host of current chargers built into motorhomes & caravans such as BCA, CBE, Dometic, Nordelectronica, Sargent, Schaudt, Truma, Victron and Voltronic. Of course should you wish to upgrade your charger to a more powerful, dedicated lithium LiFePO4 charger this is recommended as it will charge faster and more efficiently but it is NOT essential with LithiumPro lithium batteries.

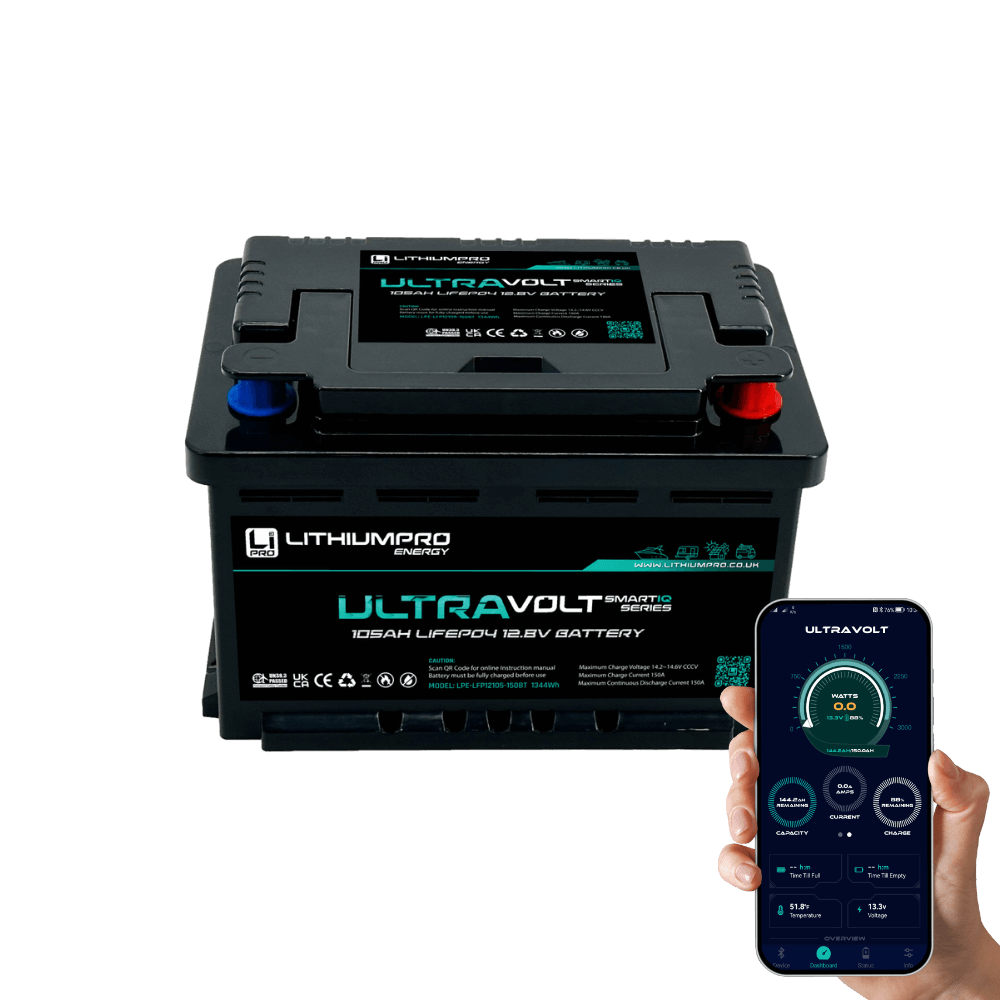

Using the latest Bluetooth 5 technology on your IOS or Android device you can pair to a SMARTIQ SERIES battery for real time data monitoring.
Whether your system is connected in SERIES or PARALLEL with the SMARTIQ APP you can monitor your system overview data all on a single screen
The BMS Battery Management System controls all battery parameters, logging and logs the faults when it has had to intervene for safety and help you use your battery more efficiently.
No more guessing - Get live data showing the % State of Charge SOC of your battery and how long till your battery will be to fully charged or completely discharged
Here at LithiumPro Energy we pride ourselves on providing our customers with the very highest quality. All LithiumPro batteries have undergone rigorous testing procedures to ensure they comply fully with all UK & EU Legal Product Certification. Our batteries demonstrate compliance with UN38.3, UKCA, CE, ROHS, EMC & RED. The 105AH EVE Prismatic cells have obtained UL1642 and UL2580 certification, ensuring compliance with the stringent safety and performance criteria.
Lithium Iron Phosphate is classified as a Class 9 Hazardous material so in order to ship the battery via Rail, Road or Sea they have to adhere stringent handling, packaging and labelling requirements of the United Nations UN38.3 Certification.
SAFETY INSTRUCTIONS
• Before use read & follow instructions provided by the manufacturer.
• Do not expose the battery to direct sunlight or extreme temperatures.
• Do not disassemble the battery. Opening the battery will VOID Warranty Do not short circuit the battery.
• Store the battery in a well ventilated area.
• Only use a recommended (LiFePO4) Lithium charger Do not immerse the battery in water.
• Do not crush, incinerate or modify the battery.
• Recycle the battery according to local regulations.
| ELECTRICAL SPECIFICATIONS | |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 105Ah |
| Energy | 1344Wh |
| Internal Resistance | ≤10 mΩ |
| Efficiency | ≥99% |
| Self Discharge | <3% per month |
| MECHANICAL SPECIFICATIONS | |
| Dimensions (LxWxH) DIN H6 | 280x178x189mm |
| Weight | 10 Kgs |
| Cycles | ≥5000 @ 80% DOD |
| Case Material | ABS |
| Enclosure Protection | IP67 |
| Terminal Type | SAE Brass Post |
| Cell Chemistry (EVE-LF105) | LiFePO4 – Prismatic UL1642, UL2580 |
| BMS PROTECTION SPECIFICATIONS | |
| Max Continuous Charge Current | 150A Recommended (75A) |
| Max Continuous Discharge Current | 150A |
| Peak Discharge | 200A (10 Secs) |
| Discharge Protection cut-off | 10V |
| Over Charge Protection cut-off | 14.5V |
| Passive Cell Balancing Voltage | 3.5V |
| Short Circuit Protection | 900<500uS |
TEMPERATURE SPECIFICATIONS | |
Storage Temperature | -10 ~ 45ºC |
Discharge Temperature | -20 ~ 60ºC |
Charge Temperature | 0~ 60ºC |
| RECOMMENDED (LIFEPO4) CHARGING SPECIFICATIONS | |
| Charging Voltage (CCCV) | 14.2v- 14.6V |
| Float Voltage | 13.3-13.9V |
| Charging Current | ≤ 75A |
| Parallel & Series Connections | Max 4 (48V) |
Its important to consider the following factors when choosing the right Lithium Battery for your application:
